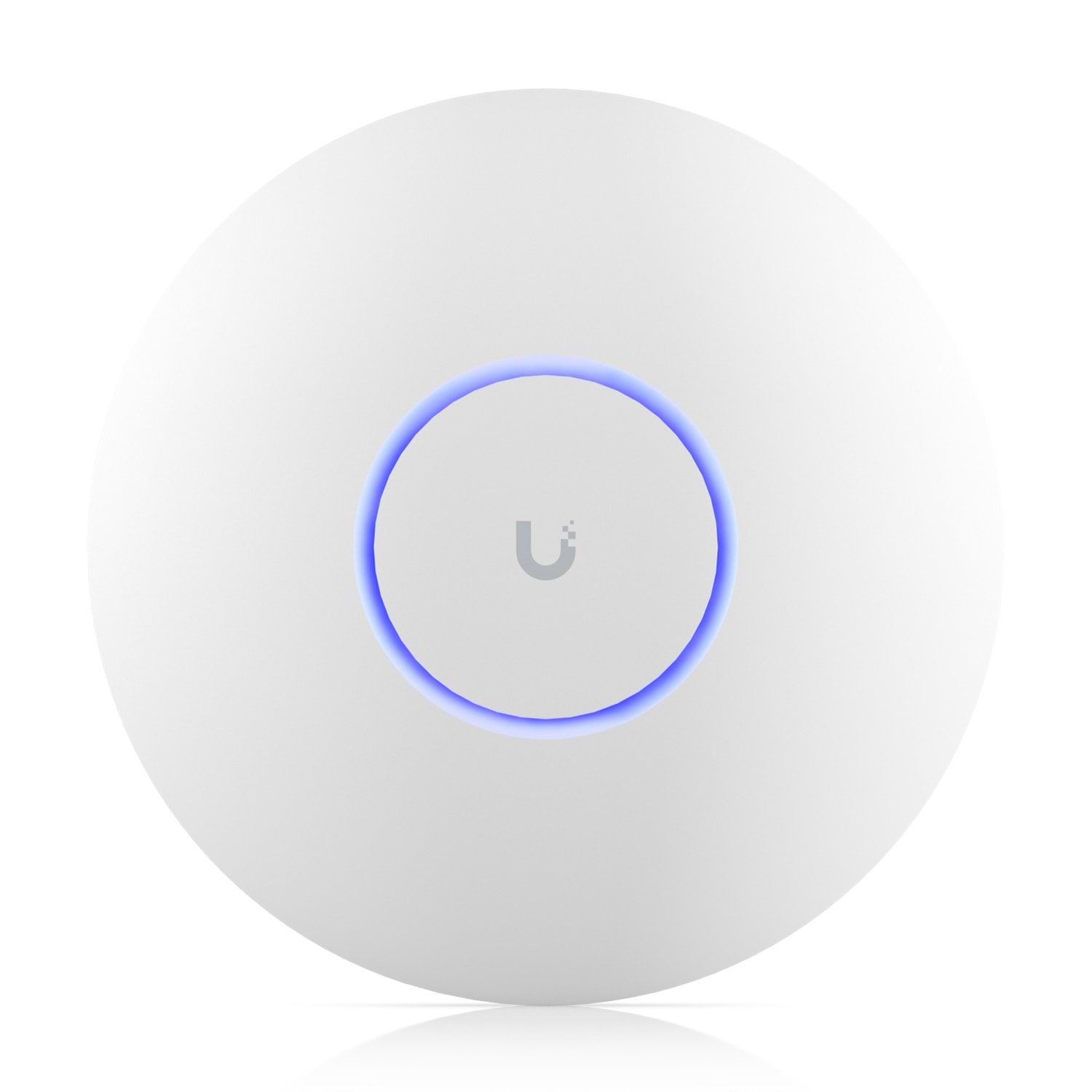

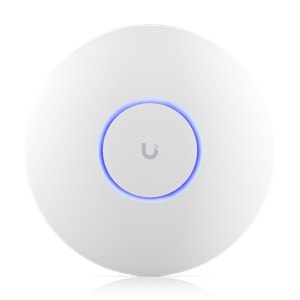

UniFi 7 LR ( Without POE )

Overview

• Dimensions:  Ø171.5 x 33 mm (Ø6.8 x 1.3″)
• WiFi Standard:  WIFi 7
• Spatial Streams:  5
• Coverage Area:  160 m² (1,750 ft²)
• Max. Client Count:  300+
• Uplink:  2.5 GbE
• Mounting Locations:  Ceiling, wall
• Mounting Plate:  Plastic mounting plate (Included)
• Power Method: PoE

Performance

• MIMO 5 GHz 3 x 3 (DL/UL MU-MIMO)
  • 2.4 GHz 2 x 2 (DL/UL MU-MIMO)
• Max. Data Rate
  • 5 GHz 4.3 Gbps (BW240)
  • 2.4 GHz 688 Mbps (BW40)
• Antenna Gain 5 GHz 6 dBi
  • 2.4 GHz 4 dBi
• Max. TX Power 5 GHz 27 dBm 2.4 GHz 26 dBm
• Supported Data Rates 802.11be (WiFi 7) 7.3 Mbps to 4.3 Gbps (MCS0 – MCS13 NSS1/2/3, EHT 20/40/80/160) 802.11ax (WiFi 6) 7.3 Mbps to 3.6 Gbps (MCS0 – MCS11 NSS1/2/3, HE 20/40/80/160) 802.11ac (WiFi 5) 6.5 Mbps to 2.6 Gbps (MCS0 – MCS9 NSS1/2/3, VHT 20/40/80/160) 802.11n 6.5 Mbps to 450 Mbps (MCS0 – MCS23 , HT 20/40)

Features

•  Wireless Meshing:  Yes
•  Band Steering:  Yes
•  802.11v BSS Transition Management:  Yes
•  802.11r Fast Roaming:  Yes
•  802.11k Radio Resource Management (RRM):  Yes
•  Advanced Radio Management:  Yes
•  Passpoint (Hotspot 2.0):  Yes
•  Captive Hotspot Portal
  • Custom Branding Landing Page: Yes
  • Voucher Authentication: Yes
  • Payment-Based Authentication: Yes
  • External Portal Server Support: Yes
  • Password Authentication: Yes
  • Guest Network Isolation: Yes
•  Private Pre-Shared Key (PPSK):  Yes
•  WiFi Speed Limiting:  Yes
•  Client Device Isolation:  Yes
•  WiFi Schedules:  Yes
•  RADIUS over TLS (RadSec):  Yes
•  Dynamic RADIUS-assigned VLAN:  Yes

Hardware

•  Max. Power Consumption: 14W
•  Includes PoE Adapter —
•  Supported Voltage Range:  42.5—57V DC
•  Networking Interface:  (1) 2.5 GbE RJ45 port
•  Weight:  448 g (15.8 oz)
•  Management:  Ethernet
•  Enclosure Material:  Polycarbonate, aluminum alloy
•  Mount Material:  Polycarbonate, galvanized steel (SGCC)
•  LEDs System – White/Blue
•  Channel Bandwidth:  HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160 (MHz)
•  Certifications:  CE, FCC, IC
•  NDAA Compliant –
•  Ambient Operating Temperature:  -30 to 40° C (-22 to 104° F)
•  Ambient Operating Humidity:  5 to 95% noncondensing
