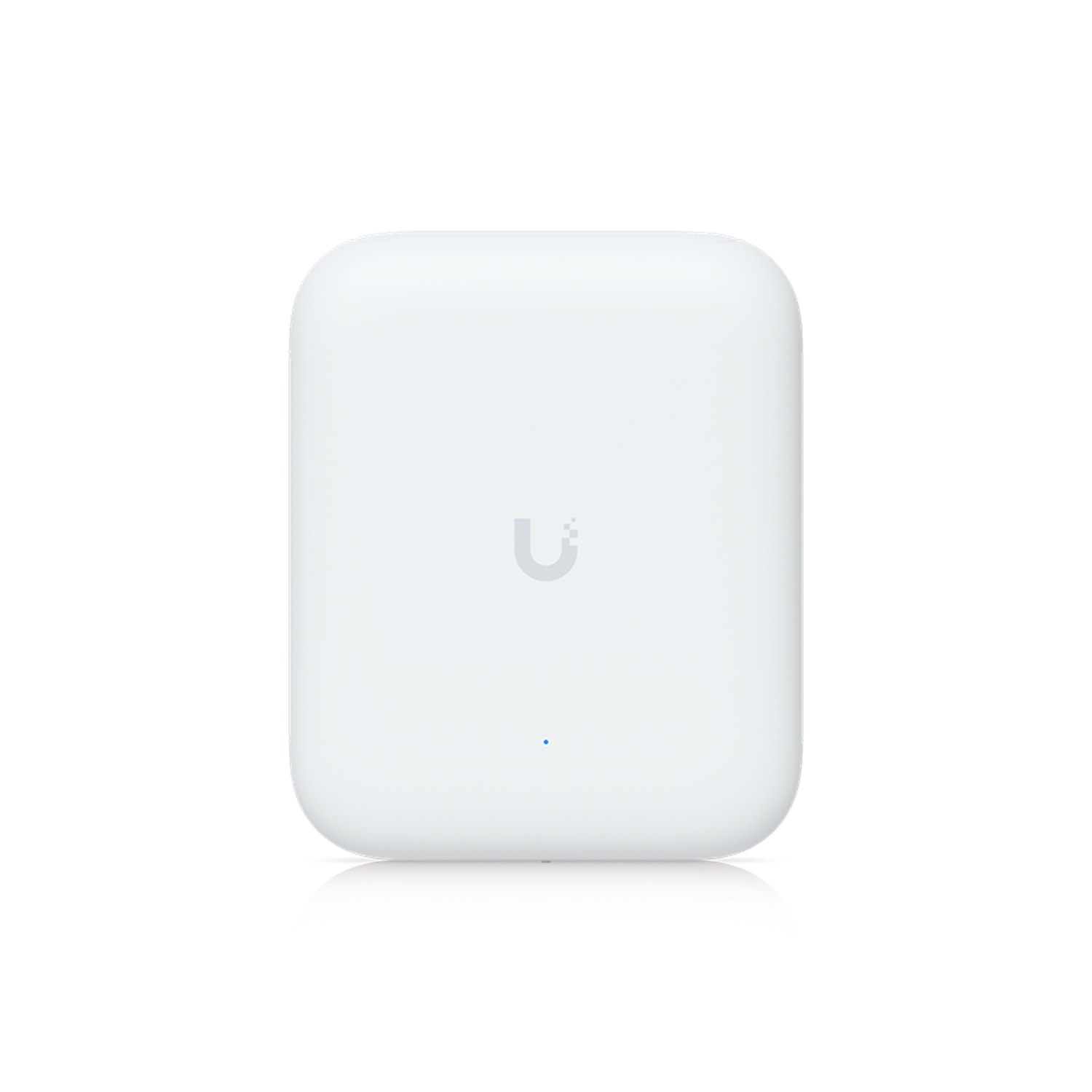

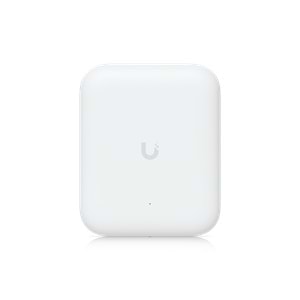

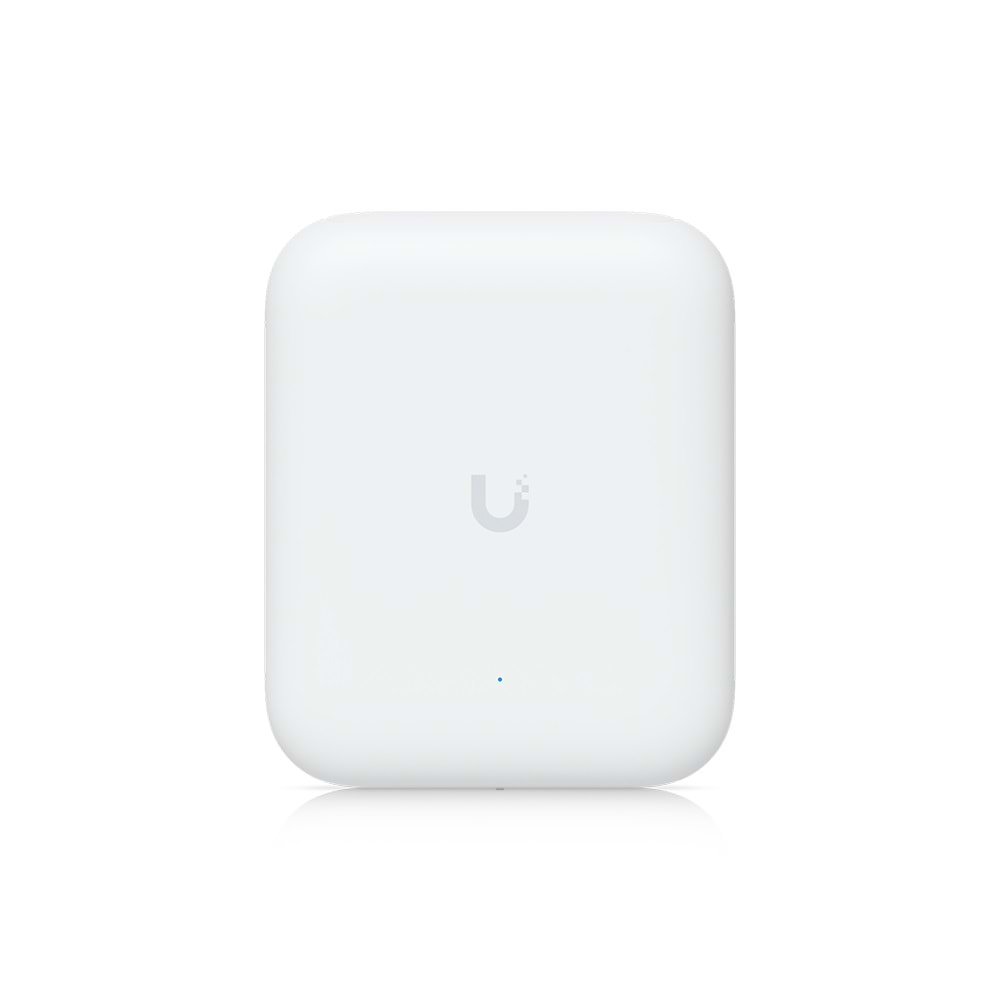

All-weather IP67 WiFi 7 AP with 6 spatial streams, extended-range AFC 6 GHz support, integrated directional super antenna, and articulation mounting bracket.
Specification:
Dimensions: Without mount: 170 x 208 x 66.5 mm (6.7 x 8.2 x 2.6″) With mount: 170 x 208 x 121.8 mm (6.7 x 8.2 x 4.8″)
WiFi Standard: WiFi 7
Spatial Streams: 6
Coverage Area: 465 m² (5,000 ft²)
Max. Client Count: 300+
Uplink: 2.5 GbE
Mounting:
Wall
Pole (Mounts Included)
Weatherproofing:
IPX6
IP67 (With cable-gland door kit)
Power Method: PoE+
Performance
MIMO:
6 GHz: 2 x 2 (DL/UL MU-MIMO)
5 GHz: 2 x 2 (DL/UL MU-MIMO)
2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
Max. Data Rate:
6 GHz: 5.7 Gbps (BW320)
5 GHz: 4.3 Gbps (BW240)
2.4 GHz: 688 Mbps (BW40)
Antenna Gain:
6 GHz: Directional internal: 10 dBi
5 GHz:
Directional internal: 11 dBi
External omni: 8 dBi
2.4 GHz:
Directional internal: 8 dBi
External omni: 6 dBi
Max. TX Power:
6 GHz: 6 dBm
5 GHz: 26 dBm
2.4 GHz: 23 dBm
Max. BSSIDs: 8 per Radio
Supported Data Rates:
802.11be (WiFi 7): 7.3 Mbps to 8.6 Gbps (MCS0-MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)
802.11ax (WiFi 6/6E): 7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2, HE 20/40/80/160)
802.11ax (WiFi 6): 7.3 Mbps to 4.8 Gbps (MCS0-MCS11 NSS1/2/3/4, HE 20/40/80/160)
802.11ac (WiFi 5): 6.5 Mbps to 3.4 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11n: 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
Features
Wireless Meshing: Yes
Band Steering: Yes
802.11v BSS Transition Management: Yes
802.11r Fast Roaming: Yes
802.11k Radio Resource Management (RRM): Yes
Advanced Radio Management: Yes
Passpoint (Hotspot 2.0): Yes
Captive Hotspot Portal:
Custom Branding Landing Page: Yes
Voucher Authentication: Yes
Payment-Based Authentication: Yes
External Portal Server Support: Yes
Password Authentication: Yes
Guest Network Isolation: Yes
Private Pre-Shared Key (PPSK): Yes
WiFi Speed Limiting: Yes
Client Device Isolation: Yes
WiFi Schedules: Yes
RADIUS over TLS (RadSec): Yes
Dynamic RADIUS-assigned VLAN: Yes
Hardware
Max. Power Consumption: 21W
Supported Voltage Range: 42.5—57V DC
Networking Interface: (1) 1/2.5 GbE RJ45 port
Weight:
Device: 1.2 kg (2.6 lb)
With mount: 1.33 kg (2.9 lb)
Wind Loading: 74.6 N at 200 km/h (16.8 lbf at 125 mph)
Pole Mount Diameter: 1–2.5″ (25–63.5 mm)
Management: Ethernet
Enclosure Material: UV-stabilized polycarbonate, aluminum alloy
Mount Material: UV-stabilized polycarbonate
LEDs:
System:
(1) Power: White/Blue
(4) Mesh signal: Blue
Certifications: FCC, IC
NDAA Compliant: Yes
Ambient Operating Temperature: -30 to 60° C (-22 to 140° F)
Ambient Operating Humidity: 5 to 95% noncondensing
Software
Application Requirements:
UniFi Network: Version 9.0.114 and later
UniFi OS: iOS™ version 10.20.2 and later Android™ version 10.21.7 and later
