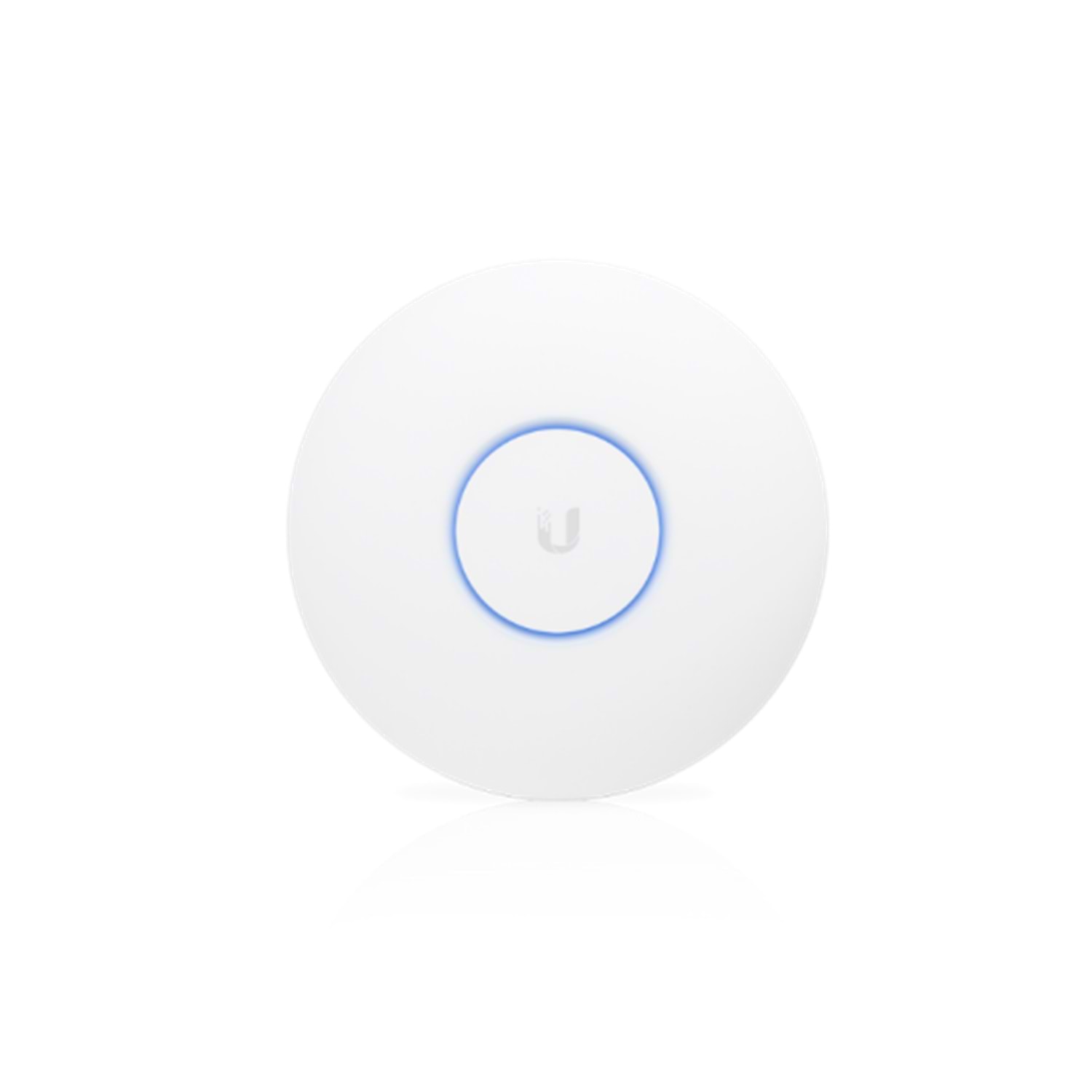

The Ubiquiti UniFi U6+ is an entry-level access point for small venues. More info coming soon.
Ubiquiti UniFi U6+ Key Features:
- WiFi6 (2×2 MIMO)
- Powered using PoE
- (1) GbE RJ45 port
- Throughput rate 2.4 GHz 573.5 Mbps / 5 GHz 2402 Mbps
Ubiquiti UniFi U6+ – Technical Specifications
Mechanical
- Dimensions Ø160 x 33 mm (Ø6.3 x 1.3″)
- Weight Without mount: 338 g (0.75 lb)
- With mount: 413 g (0.91 lb)
- Enclosure materials Top cover: polycarbonate
- Bottom cover: aluminum
- Mount materials ABS, SGCC steel
Hardware
- Networking interface (1) GbE RJ45 port
- Management interface Ethernet
- Power method PoE
- Supported voltage range 44–57V DC
- Max. power consumption 9W
- Max. TX power 2.4 GHz 23 dBm
5 GHz 23 dBm - MIMO 2.4 GHz 2 x 2
5 GHz 2 x 2 - Throughput rate 2.4 GHz 573.5 Mbps
5 GHz 2402 Mbps - Antenna gain 2.4 GHz 3 dBi
5 GHz 5.4 dBi - LED White/blue
- Button Factory reset
- Mounting Wall/ceiling (included)
- Operating temperature -30 to 60° C (-22 to 140° F)
- Operating humidity 5 to 95% noncondensing
- Certications CE, FCC, IC
Software
- WiFi standards 802.11a/b/g
WiFi 4/WiFi 5/WiFi 6 - Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
- BSSID 8 per radio
- VLAN 802.1Q
- Advanced QoS Per-user rate limiting
- Guesttrafc isolation Supported
- Zero wait DFS Not supported
- Concurrent clients 300+
