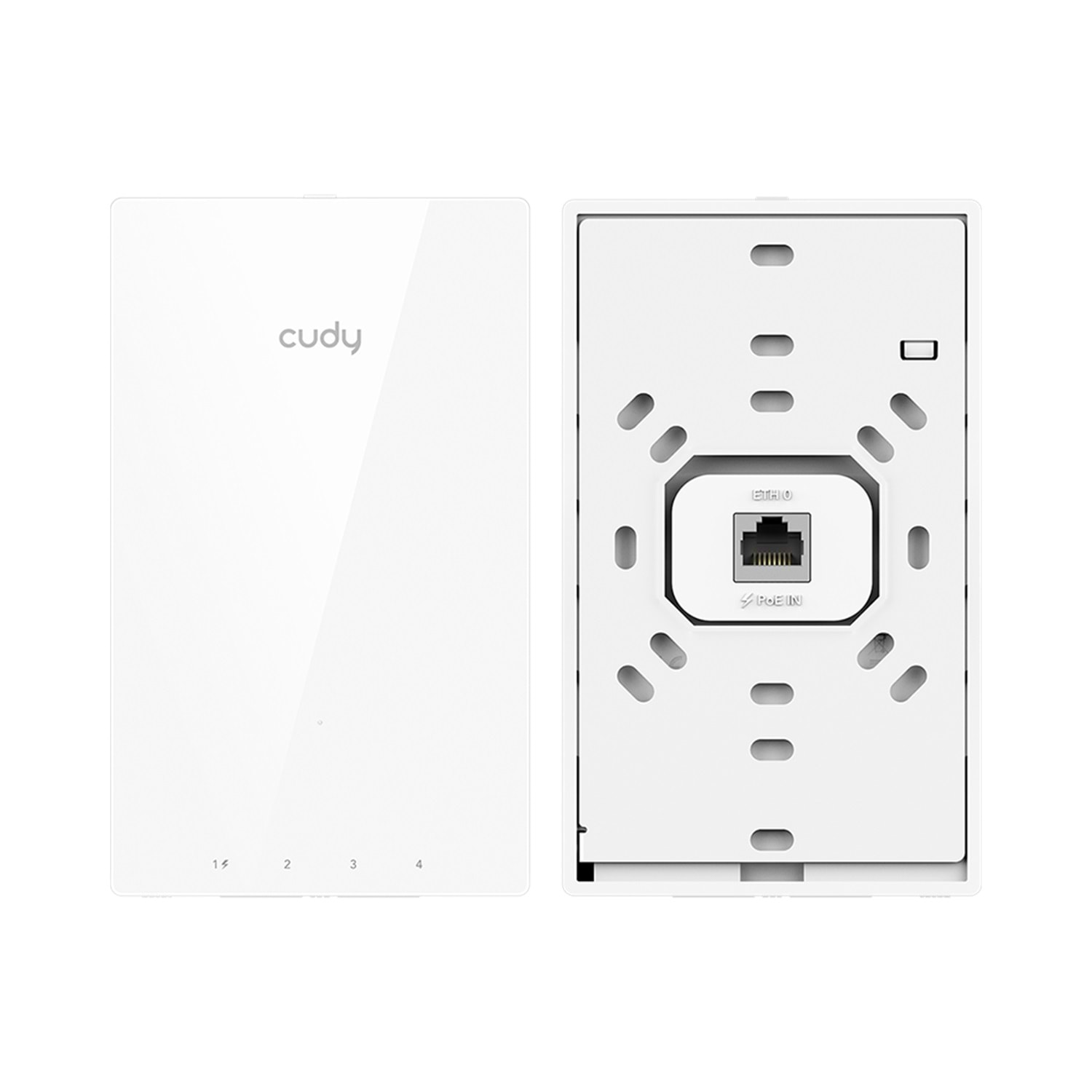

| Model Version | AP1300 Wall 1.0 |
| CPU | CPU Details | 880 MHz Dual-Core CPU |
| Memory/Storage | Flash/ROM | 16 MB (128 Mbit) NOR |
| | DDR/RAM | 128 MB (1 Gbit) DDR3 |
| Wireless | 5 GHz Wi-Fi Speed | 867 Mbps |
| | 2.4 GHz Wi-Fi Speed | 300 Mbps |
| | 5 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) |
| | 2.4 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) |
| | Wi-Fi Antennas | 2× Internal |
| | 5 GHz Antenna Gain Max | 5.6 dBi |
| | 2.4 GHz Antenna Gain Max | 5.0 dBi |
| | FEM or PA/LNA | - 5 GHz: 2× Internal
- 2.4 GHz: 2× Internal
|
| | Beamforming | True |
| | Range Performance | Max: 80 m (262 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions. |
| | Wall Performance | Two wooden walls with thickness < 10 cm (4”)
One concrete wall with thickness < 20 cm (7”) |
| Interfaces | Gigabit RJ45 Ports | 5 |
| | Ethernet Notes | Accepts PoE powering |
| | LED | System |
| | Physical Buttons | - Reset Button
- LED On/Off Button (Configurable to control LED and Wi-Fi)
|
| | Power Input | PoE via Ethernet Port |
| Power | Power Methods | - Passive PoE
- 802.3at/af PoE
|
| | Passive PoE | 48V |
| | Max Power Consumption (W) | Max (PoE): 12 W
Max (DC): NA |
| | Idle Power Consumption (W) | 4 W |
| Reliability | Advanced | Hardware Watchdog |
| | EMS | ESD: Contact: 4kV; Air: 8kV |
| | Environment | - Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
- Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
- Humidity: 10% ~ 90% non-condensing
- Storage Humidity: 5% ~ 95% non-condensing
|
| Certifications | FCC, CE |
| Mechanical | Installation | Wall-mount |
| | Dimension | 143×86×27.6 mm
5.63×3.39×1.09 inches |
| | Product Weight | 261.2 g (9.21 oz.) |
| Package Content | - AP1300 Wall
- Installation Guide
- Mounting Kit
|
| Ordering Information | Retail Package Weight | EU: 362.9 g (12.8 oz.) |
| | Retail Package Dimension | 152×39.5×90 mm
5.98×1.56×3.54 inches |
| | Units per Carton | 30 |
| | Carton Net Weight | EU: 10.9 kg (24.03 lbs) |
| | Carton Gross Weight | EU: 11.3 kg (24.91 lbs) |
| | Carton Dimension | 32.8×22×29.6 cm
12.91×8.66×11.65 inches |
