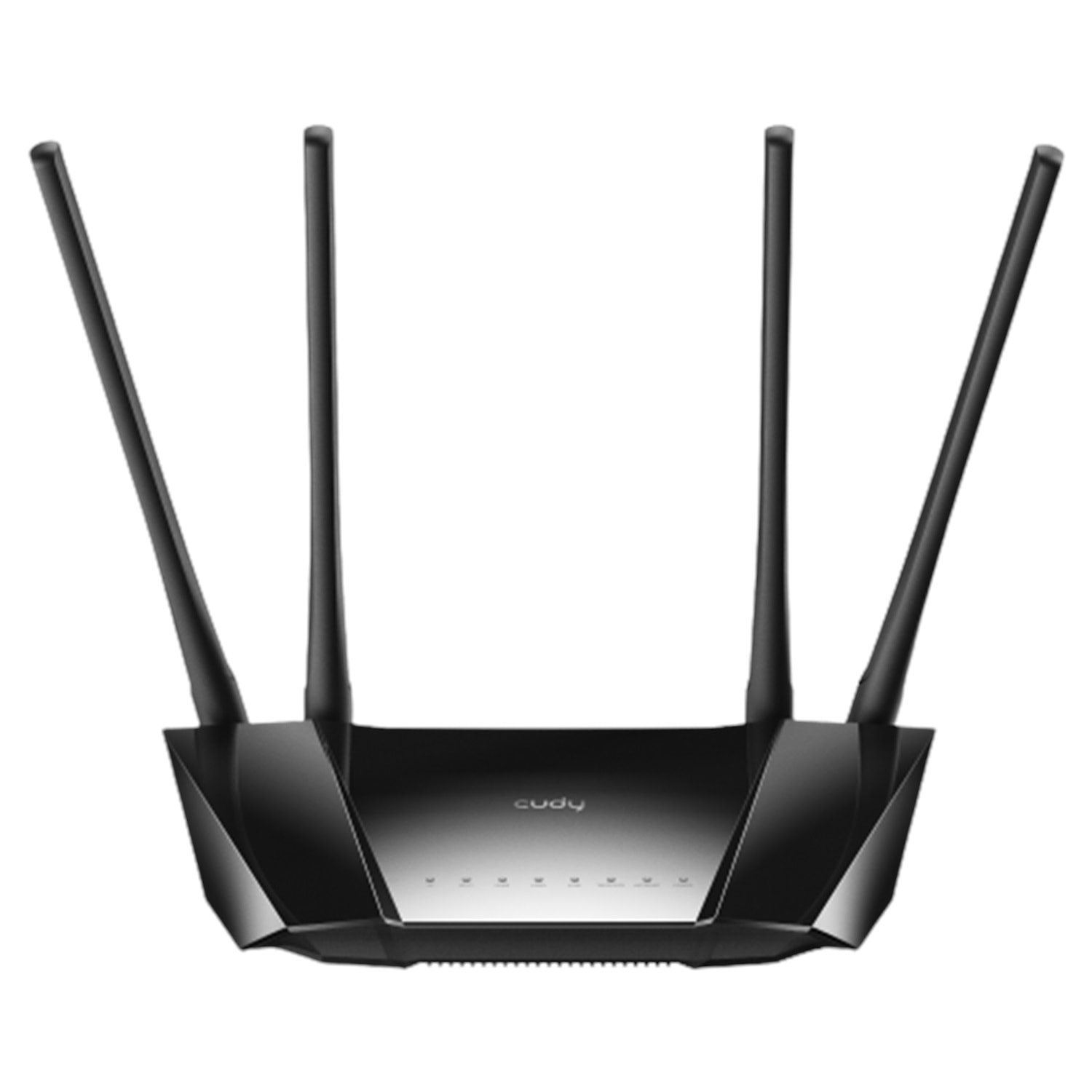

| Model | 300Mbps Wireless N 4G LTE Router |
| DRAM/FLASH | 64MB DDR2/8M SPI |
| Interface | 3 x RJ45 10M/100M LAN Ethernet interfaces |
| 1 x RJ45 10M/100M WAN Ethernet interface |
| 1 x Reset |
| 1 x Power Jack (12V/1A) |
| 1 x SIM card slot (Nano) |
| Antenna | 2.4G (802.11N): 2T2R 4G: 2T2R |
| Gain | 5dBi |
| Range | 2.4-2.4835GHZ |
| LED | PWR, WIFI, 4G, LAN1-LAN3, WAN/LAN4 |
| Transmit Power | 11b: 1/2/5.5/11Mbps |
| 11g: 6/9/12/18/24/36/48/54Mbps |
| 11n: 300Mbps(MAX) |
| Spread-spectrum technique | DSSS |
| Wireless Security | WPA-PSK/WPA2-PSK, WPA/WPA2 |
| Modulation type | 11b: CCK, QPSK, BPSK |
| 11g: OFDM |
| 11n: QPSK, BPSK, 16-QAM, 64-QAM |
| Media access protocol | CAMA/CA with ACK |
| 4G module RF Power | Class 4 (33dBm±2dB) for GSM850 |
| Class 4 (33dBm±2dB) for EGSM900 |
| Class 1 (30dBm±2dB) for DCS1800 |
| Class 1 (30dBm±2dB) for PCS1900 |
| Class E2 (27dBm±3dB) for GSM850 8-PSK |
| Class E2 (27dBm±3dB) for EGSM900 8-PSK |
| Class E2 (26dBm±3dB) for DCS1800 8-PSK |
| Class E2 (26dBm±3dB) for PCS1900 8-PSK |
| Class 3 (24dBm+1/-3dB) for WCDMA bands |
| Class 3 (23dBm±2dB) for LTE-FDD bands |
| LTE Character | Support 3GPP R8 non-CA cat 4 FDD |
| Support 1.4MHZ-20MHZ RF bandwidth UL support MIMO |
| LTD-FDD: DL 150Mbps(MAX)/ UL 50Mbps(MAX) |
LTE Frequency Bands
EU Version | LTE-FDD: B1/B3/B7/B8/B20/B28A |
| LTE-TDD: B38/B40/B41 |
| WCDMA: B1/B8 |
| GSM/EDGE: B3/B8 |
LTE Frequency Bands
US Version | LTE-FDD: B2/B4/B5/B12/B13/B14/B66/B71 |
| WCDMA: B2/B4/B5 |
| Software function | Access mode | Router mode |
| Basic setting | WAN setting |
| LAN setting |
| Mac clone |
| DNS |
| 2.4G WiFi setting |
| 2.4G guest network setting |
| 2.4G channel setting |
| 2.4G signal strength setting |
| 2.4G channel optimization |
| Advance setting | Black list setting |
| Bonding list |
| WIFI time off |
| Web blacklist |
| Modify administrator password |
| Panel light time off |
| QoS |
| Static bonding |
| Forbidden connection |
| Restore to default setting |
| Restart router |
| Firmware upgrade |
| More functional | Web management |
| L2TP client |
| PPTP client |
| UPNP |
| DMZ |
| Remote web management |
| Port forwarding |
| Network fault diagnosis (web) |
| Working temperature | 0°C~40°C |
| Storage temperature | -20°C ~ 70°C |
| Working humidity | 5%~95% (typical) |
| Power | 12V/1A European Standard |
