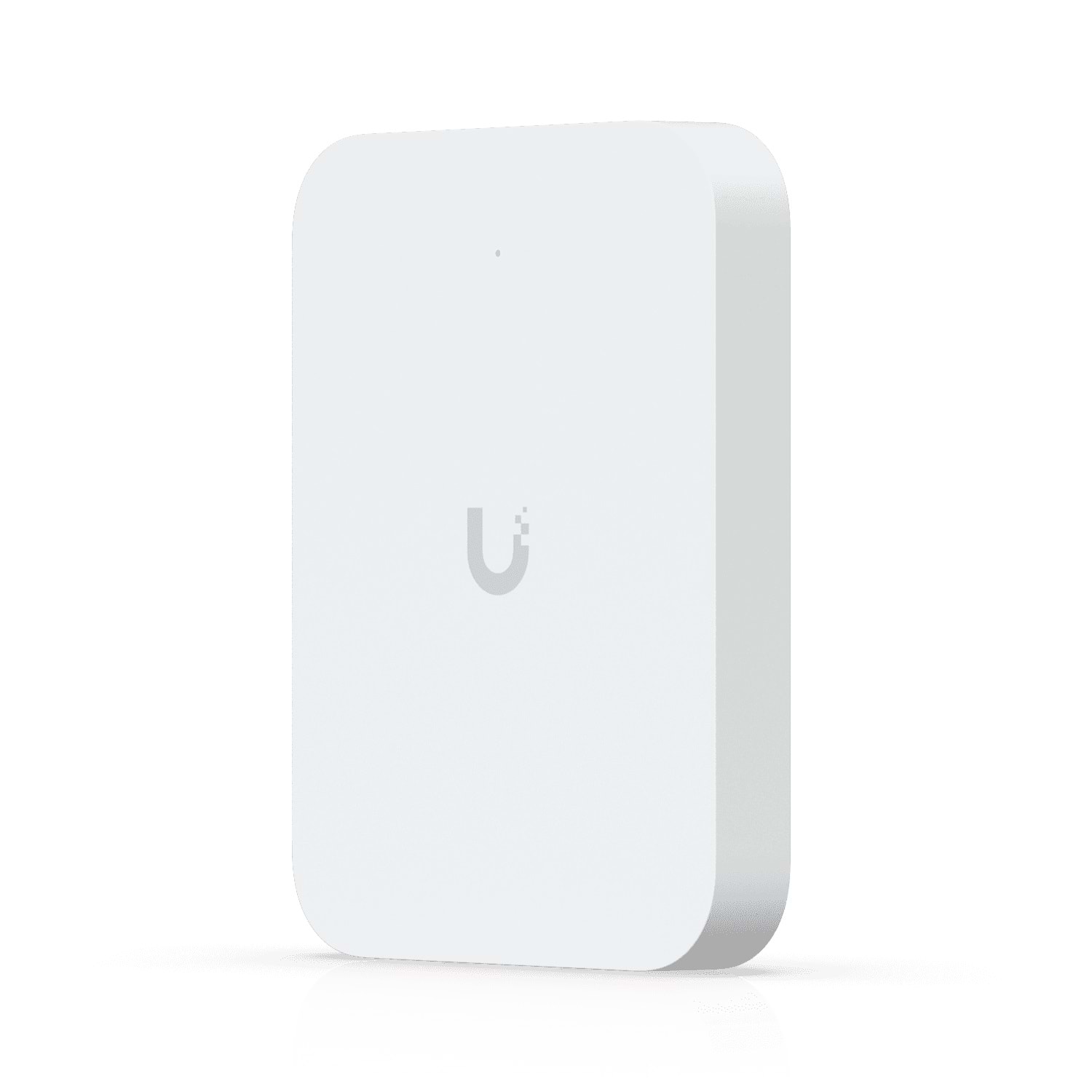

U7 In-Wall

• Dimensions: 137 x 98.7 x 30.2 mm (5.4 x 3.9 x 1.2″)
• WiFi Standard:  WiFi 7
• Spatial Streams:  4
• Coverage Area: 115 m² (1,250 ft²)
• Max. Client Count:  200+
• Uplink:  2.5 GbE
• Mounting Locations:  Wall
• Mounting Plate:  Metal wall mount (Included)
• Power Method: PoE,  PoE+ (Required for PoE output)

Performance

•  MIMO
  • 5 GHz 2 x 2 (DL/UL MU-MIMO)
  • 2.4 GHz 2 x 2 (DL/UL MU-MIMO)
•  Max. Data Rate
  • 5 GHz 4.3 Gbps (BW240)
  • 2.4 GHz 688 Mbps (BW40)
•  Antenna Gain
  • 5 GHz 8 dBi
  • 2.4 GHz 4 dBi
•  Max. TX Power
  • 5 GHz 24 dBm
  • 2.4 GHz 23 dBm
•  Max. BSSIDs 8 per Radio
•  Supported Data Rates
  • 802.11be (WiFi 7) 7.3 Mbps to 4.3 Gbps (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/240)
  • 802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2, HE 20/40/80/160)
  • 802.11ac (WiFi 5) 6.5 Mbps to 1.7Gbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80/160)
  • 802.11n 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)

Features

•  Wireless Meshing:  Yes
•  Band Steering:  Yes
•  802.11v BSS Transition Management:  Yes
•  802.11r Fast Roaming:  Yes
•  802.11k Radio Resource Management (RRM):  Yes
•  Advanced Radio Management:  Yes
•  Passpoint (Hotspot 2.0):  Yes
•  Captive Hotspot Portal
  • Custom Branding Landing Page: Yes
  • Voucher Authentication: Yes
  • Payment-Based Authentication: Yes
  • External Portal Server Support: Yes
  • Password Authentication: Yes
  • Guest Network Isolation: Yes
•  Private Pre-Shared Key (PPSK):  Yes
•  WiFi Speed Limiting:  Yes
•  Client Device Isolation:  Yes
•  WiFi Schedules:  Yes
•  RADIUS over TLS (RadSec):  Yes
•  Dynamic RADIUS-assigned VLAN:  Yes

Hardware

• • Max. Power Consumption:  13W (Excluding PoE output)
  • Supported Voltage Range:  42.5—57V DC
  • Networking Interface:  (3) 2.5 GbE RJ45 ports
  • Weight : 400 g (14.1 oz)
  • Management:  Ethernet
  • Built-In Switch:  (1) PoE+ input and (1) PoE output
  • Enclosure Material:  Polycarbonate, aluminum alloy
  • Mount Material:  Aluminum alloy
  • LEDs
    • System White/Blue
  • Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)
  • Certifications: CE, FCC, IC
  • Ambient Operating Temperature:  -30 to 40° C (-22 to 104° F)
  • Ambient Operating Humidity:  5 to 95% noncondensing

Software

• Application Requirements
  • UniFi Network :Version 9.0.114 and later
  • UniFi OS: iOS™ version 10.20.2 and later, Android™ version 10.21.7 and later
