INPUT
Rated power 20000 VA
Voltage 380 / 400 / 415 V three-phase + N
Voltage tolerance 400 ±20% @ full load (for wider tolerance conditions apply)
Frequency tolerance 40 – 72 Hz
Power factor 0.99
BY PASS
Rated voltage 380 / 400 / 415 V three-phase + N
Voltage tolerance From 180 V (adjustable 180-200) to 264 V (adjustable 250-264) referring to neutral (Ph-N)
Rated frequency 50 or 60 Hz (selectable)
Frequency tolerance ±5% (selectable)
Number phases 3 + N
OUTPUT and INVERTER OUTPUT
Rated power 20000 VA
Active power 20000 W
Output current 32 (bypass) A – 29 (inverter) A A
Number phases 3 + N
Crest factor (Ipeak/Irms) 3 : 1
Waveform Sinusoidal
Static stability ±0.5%
Dynamic stability EN 62040-3 class performance 1 non-linear load
Frequency 50 or 60 Hz
Voltage distortion with nonlinear load
≤1.5%
Voltage distortion with
linear load
<1%
BATTERIES
Type VRLA AGM/GEL/NiCd/Li-ion/Supercaps
Type of charging One level, Two level, Cyclic recharge (selectable)
ENVIRONMENTAL
Color RAL 7016
Communication UPS status led bar – Graphic touch screen display – 2 slots for communications interface USB –
RS232 – Contact interface with 5x opto insulated Input and 4x Output relays
Protection rating IP20
Line-Interactive/Smart
Active efficiency
Up to 99%
Noise (at 1 m) <40 [dBA ±2] (SMART ACTIVE)
Remote signals voltage free contacts
Operating temperature 0 °C – +40 °C
Relative humidity 5-95% non-condensing
Standards European directives: LV 2014/35/EU low voltage; EMC 2014/30/EU electromagnetic compatibility —
Directive and Standards: Safety IEC EN 62040-1; EMC IEC EN 62040-2; RoHS compliant —
Classification in accordance with IEC EN 62040-3 VFI – SS – 111
DATA
Weight 52 kg
Dimensions (h w d) 700x280x840 mm

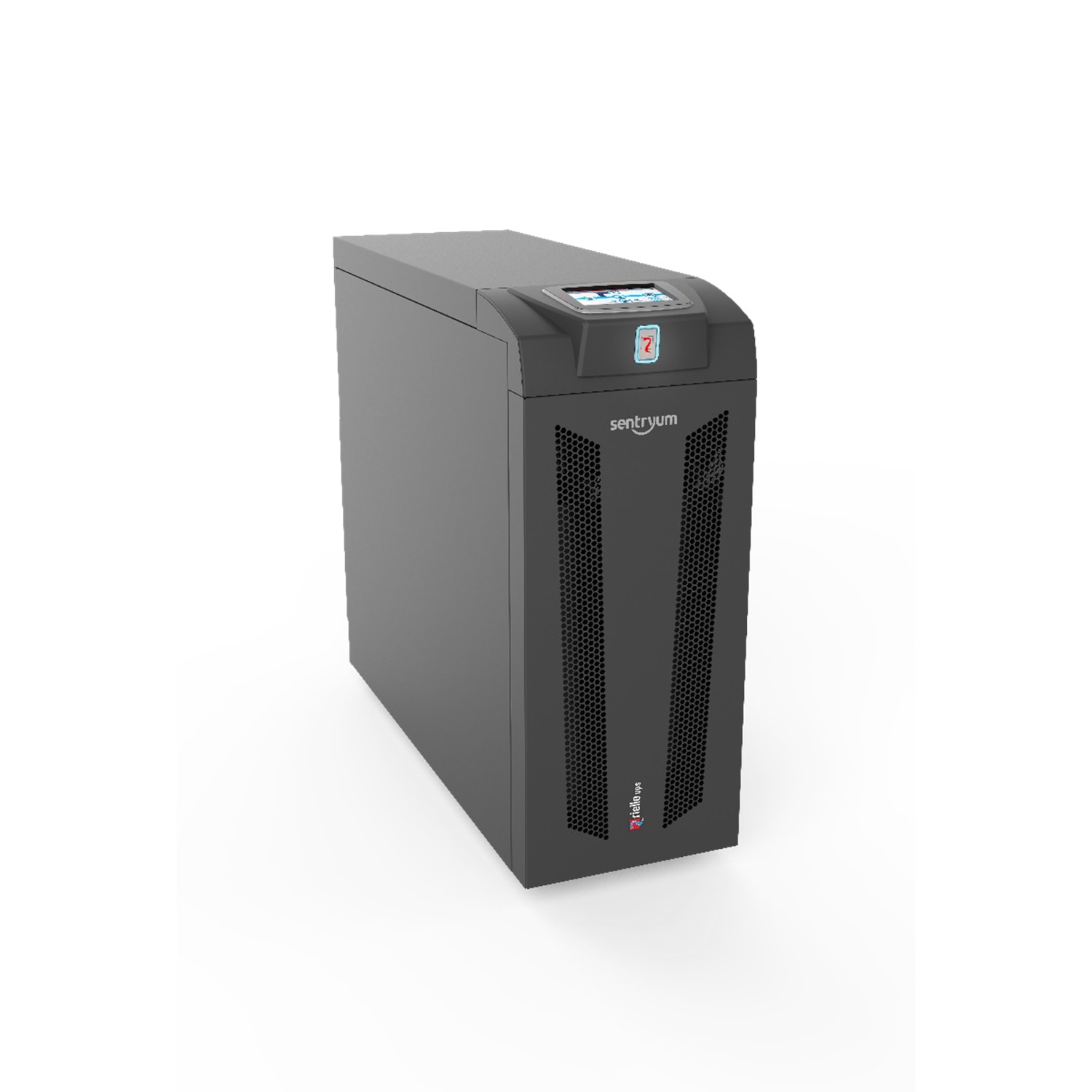

Sentryum
S
