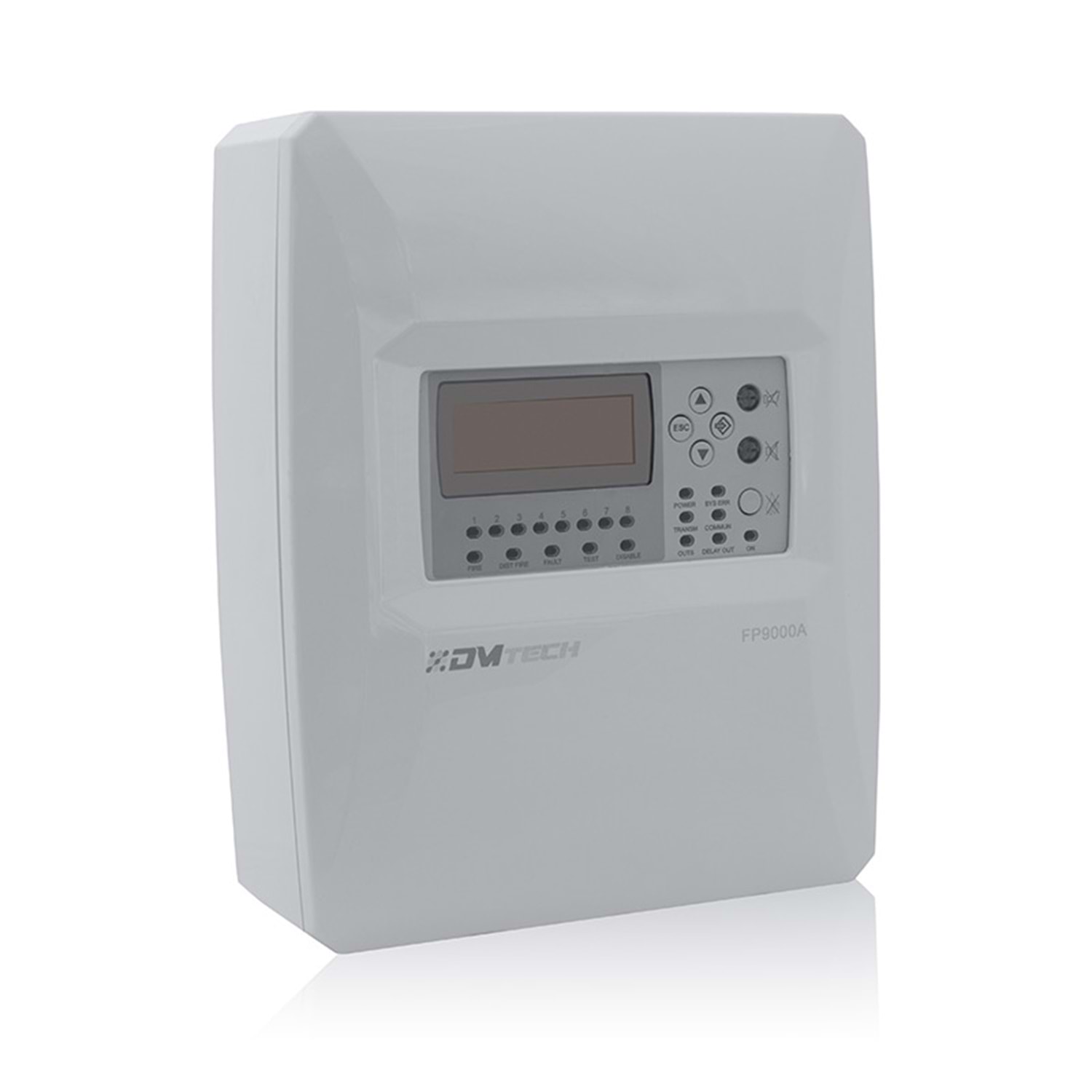

Addressable fire alarm panel, metal box

Features

• Loops: 1 (DMTech protocol)
• Devices per loop: 250
• Maximum resistance of a loop – 100 Ohm
• Maximum consumption of a loop – 500mA
• Connecting line – two-wire shielded
• Conventional line 1: (Up to 32 conventional fire detectors)
• Zones: 8
• Outputs (monitored, relay type): 2
• Outputs (non monitored, programmable, relay type): 3
• Output for fault conditions( relay type, C/NC/NO): 1
• Memory LOG: 1024 events
• Display: 4*20 symbols LCD
• Multi language support: Yes
• Programming: DMTech software
• Standard: EN54 – 2/4
• Interfaces for communication with external devices – RS485 and USB.
• Back-up Power Supply – 2 x 12V DC / Capacity C20 (4.5 or 5)Ah
• Electrical output : (24±3.6)V / 2А
• Main Power Supply 90 ÷ 264 VAC / 50 ÷ 60 Hz
• Operating temperature minus 10°C to +40°C
• Dimensions: 305 x 250 x 95 mm
• Weight (without battery): 1.2kg
