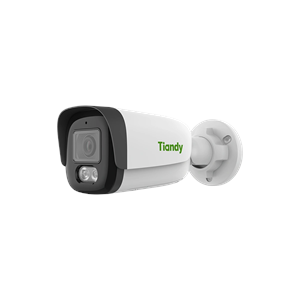

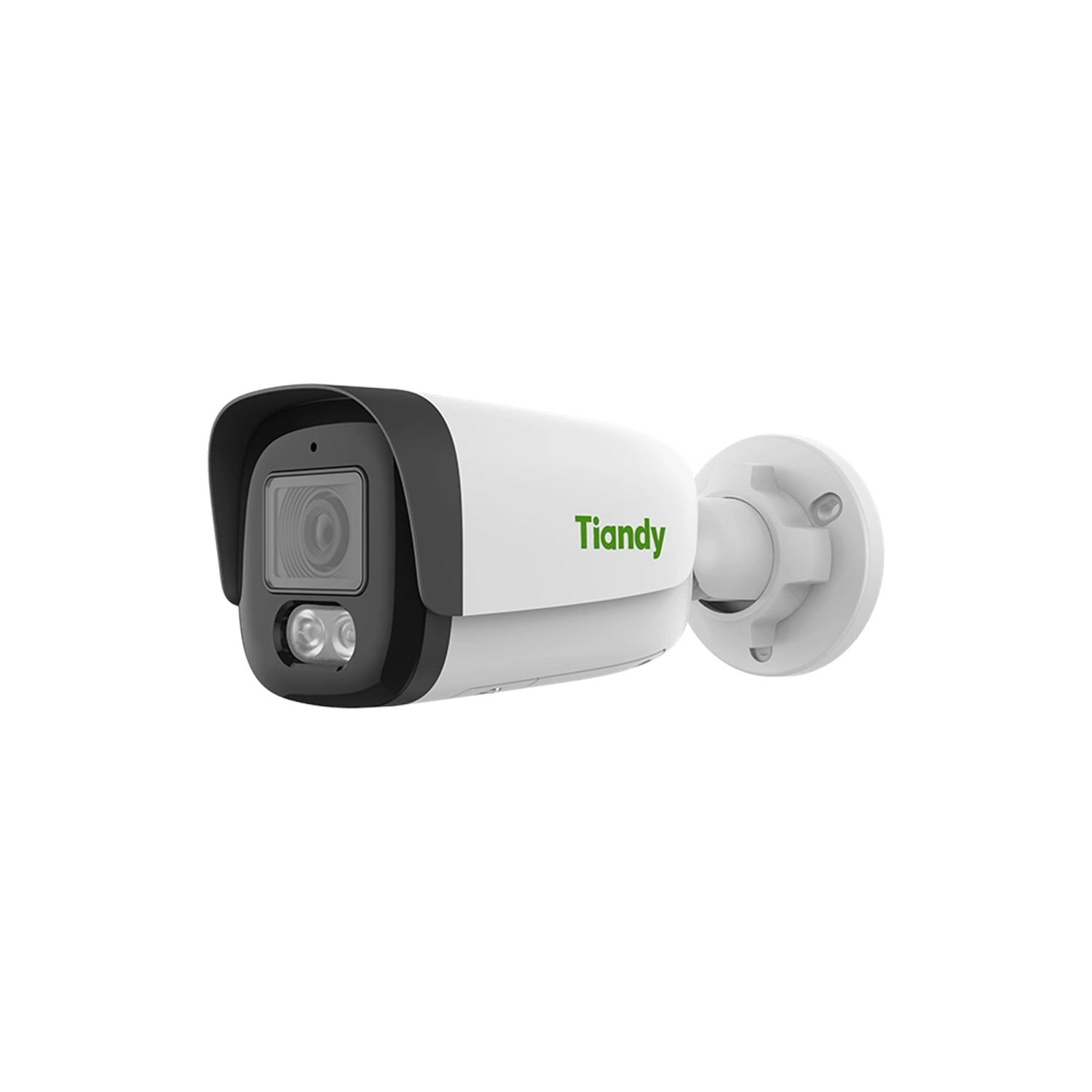

Kjo kamerë IP 8MP Ultra HD (4K) ofron imazh shumë të detajuar, WDR 120dB dhe analitikë inteligjente për njerëz dhe automjete, duke garantuar siguri të avancuar në çdo ambient. Me IR deri në 50m, ndriçim me dritë të bardhë, Corridor Mode dhe mbrojtje IP67, është zgjidhje ideale për instalime profesionale të brendshme dhe të jashtme.


Category    Specification
Image Sensor    1/2.8" CMOS
Minimum Illumination    Color: 0.002 Lux @ (F1.6, AGC ON); B/W: 0 Lux with IR
Shutter Time    1s – 1/100000s
Day & Night    IR-cut filter with auto switch (ICR)
Smart IR    Yes
WDR    120 dB
Signal-to-Noise Ratio    >42 dB
Angle Adjustment    Pan: 0–360° / Tilt: 0–90° / Rotate: 0–360°
Lens Type    Fixed focal lens
Focal Length    2.8 mm
Lens Mount    M12
Aperture    F1.6 (Fixed)
Field of View    H: 100.5° / V: 56.5° / D: 113.0°
DORI Distance    Detect: 77 m / Observe: 30.5 m / Recognize: 15.5 m / Identify: 7.5 m
IR LEDs    2
IR Distance    Up to 50 m
White LEDs    2
White Light Distance    Up to 15 m
Video Compression    S+265 / H.265 / H.264B / H.264M / H.264H / MJPEG
Video Bit Rate    32 kbps – 16 Mbps
Audio Compression    G.711A / G.711U / ADPCM_D / AAC_LC
Audio Sampling Rate    8 kHz / 32 kHz / 48 kHz
Maximum Resolution    8 MP (3840 × 2160 @ 20 fps)
Main Stream    PAL/NTSC up to 30 fps (multi-resolution support)
Sub Stream    PAL/NTSC up to 30 fps
Third Stream    PAL/NTSC up to 30 fps
BLC / HLC    Yes / Yes
AGC    Yes
3D DNR    Yes
White Balance    Auto / Semi-Auto / Manual / Presets
ROI    8 rectangular static areas
Corridor Mode    Yes
OSD    Up to 5 regions, max. 127 characters
Picture Overlay    1 × BMP image (200 × 200)
Privacy Mask    4 static black areas
Defog    Yes
General Alarms    Motion Detection, Mask Alarm
Exception Alarms    Voltage, Disk Error, IP/MAC Conflict, Network Disconnection
Linkage Method    Email, Sound, Recording, Capture, Notify Center
Video Analytics    Human & Vehicle Classification, Tripwire, Perimeter
Behavior Analysis Rules    Up to 8 per scene
ANR    Yes
Network Protocols    RTSP, RTMP, HTTP/HTTPS, TCP/UDP, SNMP, DHCP, DNS, IPv4/IPv6, SSH, FTP, SFTP
System Compatibility    ONVIF (Profile S/T/G/M), SDK, CGI, Milestone
Remote Connection    ≤ 2 users
Client Software    Easy7 VMS
Mobile Client    EasyLive Plus
Network Interface    1× RJ-45 (10/100 Base-T)
Built-in Microphone    Yes
Reset Button    Yes
On-board Storage    microSD / microSDHC / microSDXC up to 512 GB
RTC    Yes
Operating Temperature    -35°C to 65°C
Operating Humidity    ≤95% RH
Power Supply    DC 12V ±25%, Max. 6.5W; PoE IEEE 802.3af, Max. 8W
Protection    Surge 4000V, ESD 6000V, IP67
Dimensions    161 × 68 × 66 mm
Package Dimensions    215 × 95 × 120 mm
Gross Weight    0.635 kg
