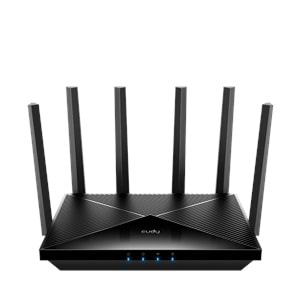

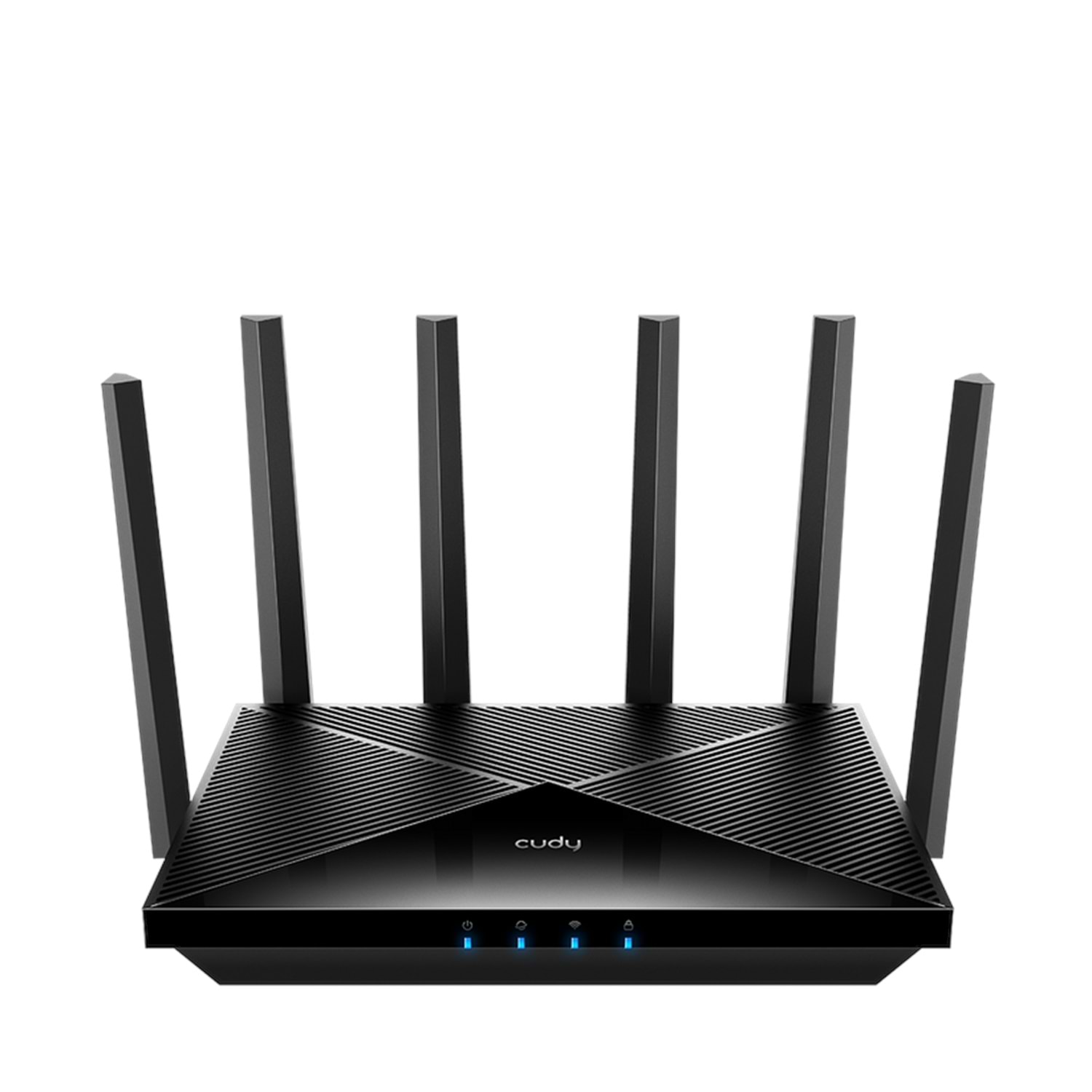

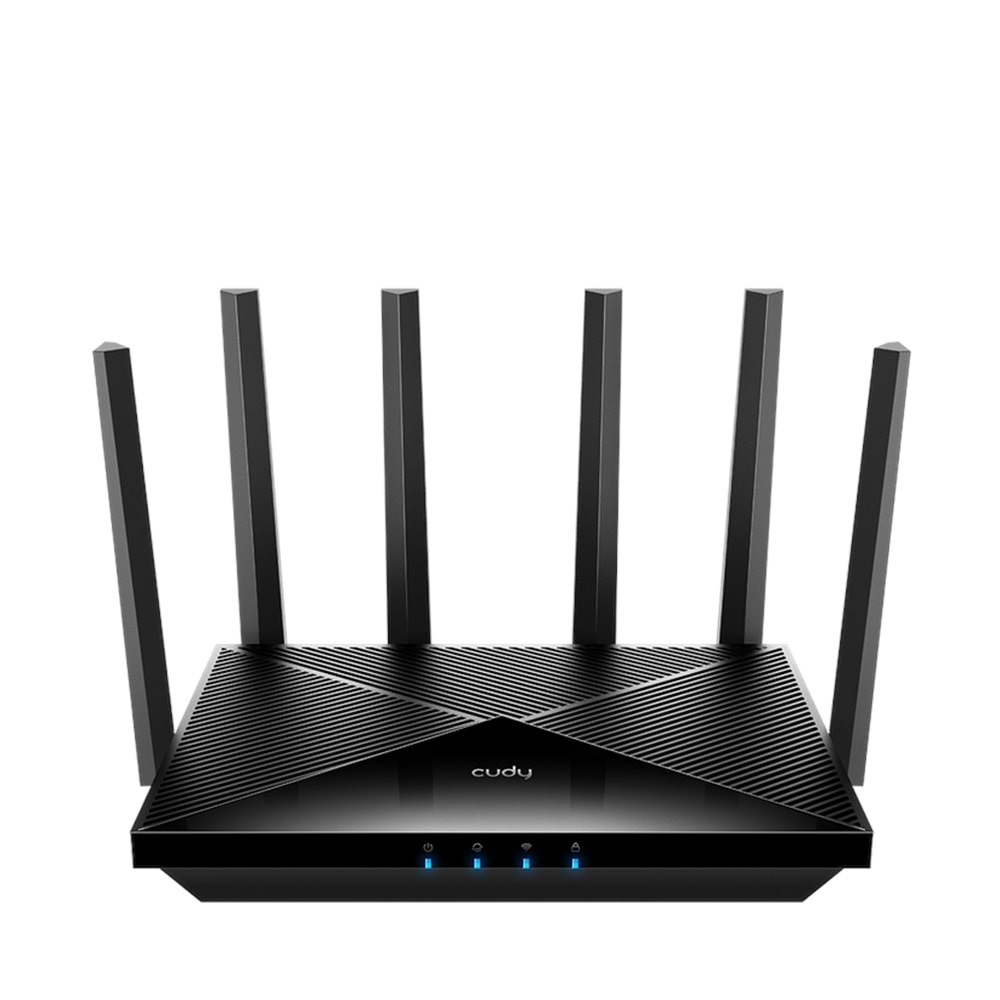

| Model Version | WR6500H 1.0 |
| CPU | CPU Details | 2.0 GHz Quad-core, ARM Cortex-A7 |
| Memory/Storage | Flash/ROM | 128 MB (1 Gbit) NAND |
| | DDR/RAM | 512 MB (4 Gbit) DDR4 |
| Wireless | 5 GHz Wi-Fi Speed | 5765 Mbps |
| | 2.4 GHz Wi-Fi Speed | 688 Mbps |
| | 5 GHz Wi-Fi Streams | 4T4R (4×4 MIMO) |
| | 2.4 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) |
| | Wi-Fi Antennas | 6× Fixed |
| | FEM or PA/LNA | - 5 GHz: 4× External
- 2.4 GHz: 2× Internal
|
| | Beamforming | True |
| | Range Performance | Max: 240 m (787 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions. |
| | Wall Performance | Two wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'') |

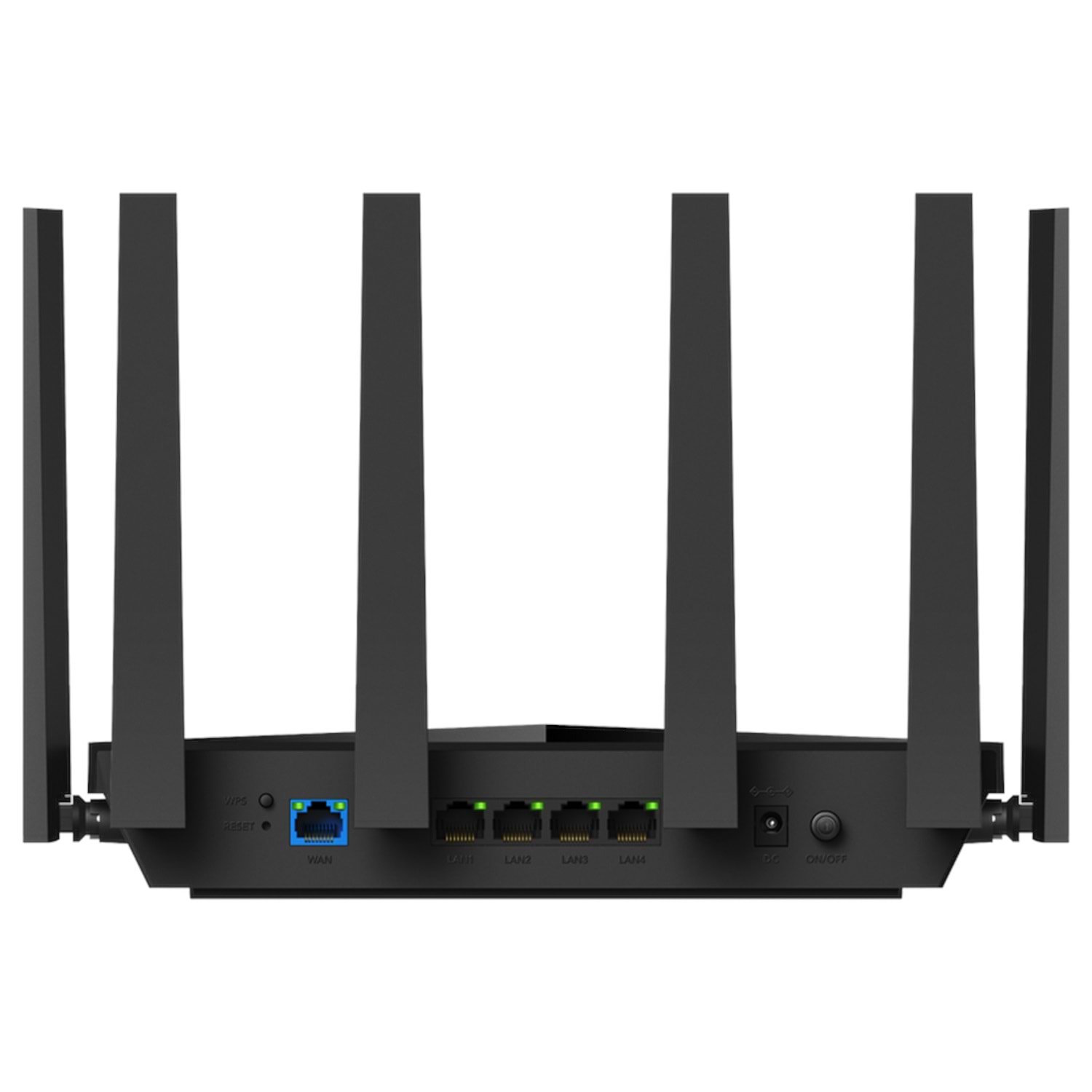

| Interfaces | 2.5G RJ45 Ports | 1 |
| | Gigabit RJ45 Ports | 4 |
| | Ethernet Notes | The 2.5G port is WAN port, the Gigabit ports are LAN ports |
| | LED | - System
- Internet
- Wi-Fi
- WPS
|
| | Physical Buttons | - Power On/Off Button
- WPS Button
- Reset Button
|
| | Power Input | DC Jack |
| Power | Power Methods | DC |
| | DC Input | 12V 1.5A |
| | Power Adapter | Input: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 1.5A DC |
| | Max Power Consumption (W) | 17W |
| Reliability | Environment | - Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
- Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
- Humidity: 10% ~ 90% non-condensing
- Storage Humidity: 5% ~ 95% non-condensing
|
| Certifications | FCC, CE |
| Mechanical | Installation | |
| | Dimension | 253×152.5×48.2 mm
9.96×6×1.9 inches |
| | Product Weight | 580.4 g (20.47 oz.) |
| Package Content | - WR6500H
- Power Adapter
- Ethernet Cable
- Installation Guide
|
| Ordering Information | Retail Package Weight | EU: 1184.0 g (41.76 oz.) |
| | Retail Package Dimension | 431×324×58 mm
16.97×12.76×2.28 inches |
| | Units per Carton | 8 |
| | Carton Dimension | 49.2×44.5×34.4 cm
19.37×17.52×13.54 inches |
| | Carton Gross Weight | EU: 10.4 kg (22.93 lbs) |
| | Carton Net Weight | EU: 9.5 kg (20.94 lbs) |
