| Model Version | WR3000P 1.0 |
| CPU | CPU Details | 1.3 GHz Dual-Core, ARM Cortex-A53 |
| Memory/Storage | Flash/ROM | 128 MB (1 Gbit) NAND |
| | DDR/RAM | 512 MB (4 Gbit) DDR4 |
| Wireless | 5 GHz Wi-Fi Speed | 2402 Mbps |
| | 2.4 GHz Wi-Fi Speed | 574 Mbps |
| | 5 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) with an Extra Stream |
| | 2.4 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) |
| | Wi-Fi Antennas | 4× Fixed |
| | FEM or PA/LNA | - 5 GHz: 3× Internal
- 2.4 GHz: 2× Internal
|
| | Beamforming | True |
| | Range Performance | Max: 220 m (722 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions. |
| | Wall Performance | Two wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'') |

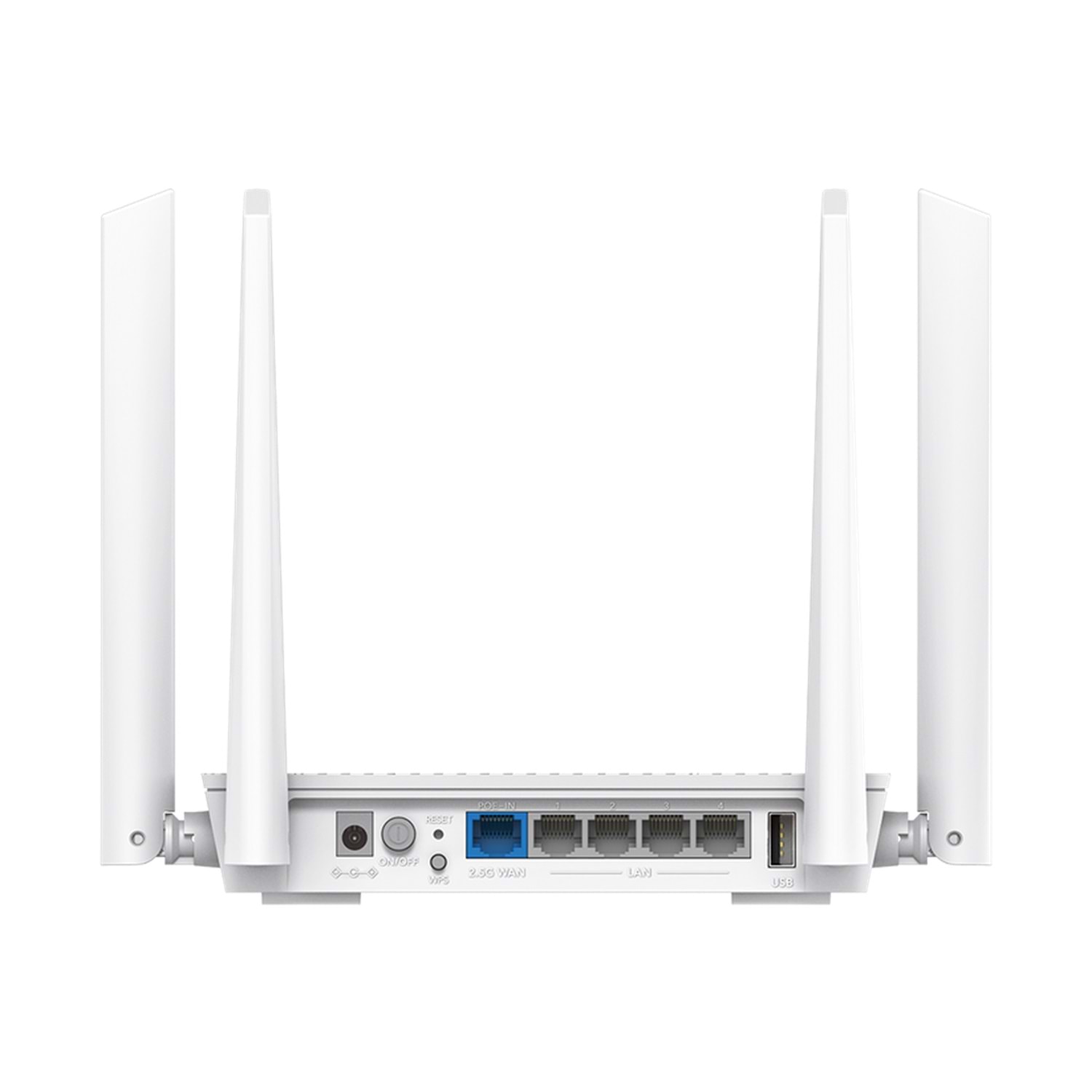

| Interfaces | 2.5G RJ45 Ports | 1 |
| | Gigabit RJ45 Ports | 4 |
| | Ethernet Notes | The 2.5G port is WAN port and accepts PoE powering, the Gigabit ports are LAN ports |
| | USB-A 2.0 Ports | 1 |
| | LED | - System
- Internet
- 2.4 GHz Wi-Fi
- 5 GHz Wi-Fi
- WAN
- LAN
- USB
|
| | Physical Buttons | - Power On/Off Button
- WPS Button
- Reset Button
|
| | Power Input | - DC Jack
- PoE via Ethernet Port
|
| Power | Power Methods | |
| | DC Input | 12V 1.5A |
| | Power Adapter | Input: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 1.5A DC |
| | Max Power Consumption (W) | 11.5w |
| | Idle Power Consumption (W) | 4.2w |
| Reliability | Environment | - Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
- Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
- Humidity: 10% ~ 90% non-condensing
- Storage Humidity: 5% ~ 95% non-condensing
|
| Certifications | FCC, CE |
| Mechanical | Installation | |
| | Dimension | 173×123.8×33 mm
6.81×4.87×1.3 inches |
| Package Content | - WR3000P
- Power Adapter
- Ethernet Cable
- Installation Guide
|
| Ordering Information | Retail Package Dimension | 304×268×54 mm
11.97×10.55×2.13 inches |
| | Units per Carton | 20 |
| | Carton Dimension | 55.6×55.5×32.5 cm
21.89×21.85×12.8 inches |
