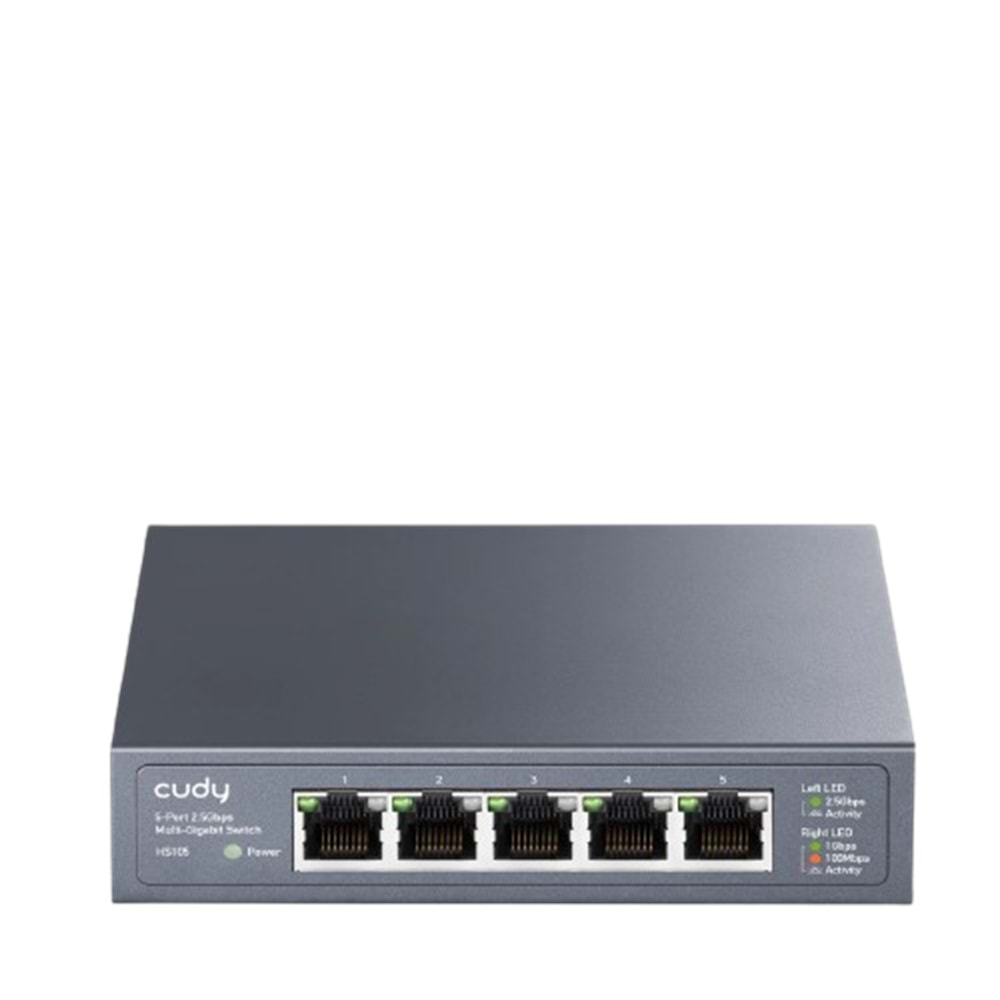

| Model Version | HS105 1.0 |
| Protocols | 802.3 Protocols | - 802.3x Flow Control
- 802.3u 100 Mbps over Twisted Pair
- 802.3ab 1 Gbps over Twisted Pair
- 802.3bz 2.5/5 Gbps over Twisted Pair
|
| CPU | Chipset | EN8860D, EN8811H |
| Interfaces | Physical Buttons | Reset Button |
| | 2.5G RJ45 Ports | 5 |
| | LED | - Power
- Speed/Link/ACT of Each Ethernet Port
|
| | Power Input | DC Jack |
| Performance | MAC Address Table | 8192 |
| | Max Switching Capcity | 25 Gbps |
| | Max Forwading Rate | 18.6 Mpps |
| | Jumbo Frame | 15 KB |
| | Packet Buffer | 4 Mbits |
| Power | Basic Power Saving | 1 |
| | Power Methods | DC |
| | DC | 12V 1A |
| | Max Power Consumption (W) | 10.5W |
| | Idle Power Consumption (W) | 4.7W |
| Reliability | Lightning/Surge Protection | 2kV |
| | ESD Air Protection | 8kV |
| | ESD Contact Protection | 4kV |
| | Environment | Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing |
| Package Content | - Main Product
- Power Adapter
- Installation Guide
- Ethernet Cable
- Mounting Kit
|
| Mechanical | Installation | |
| | Casing Material | Metal |
| | Dimension | 119×85×28 mm
4.69×3.35×1.1 inches |
