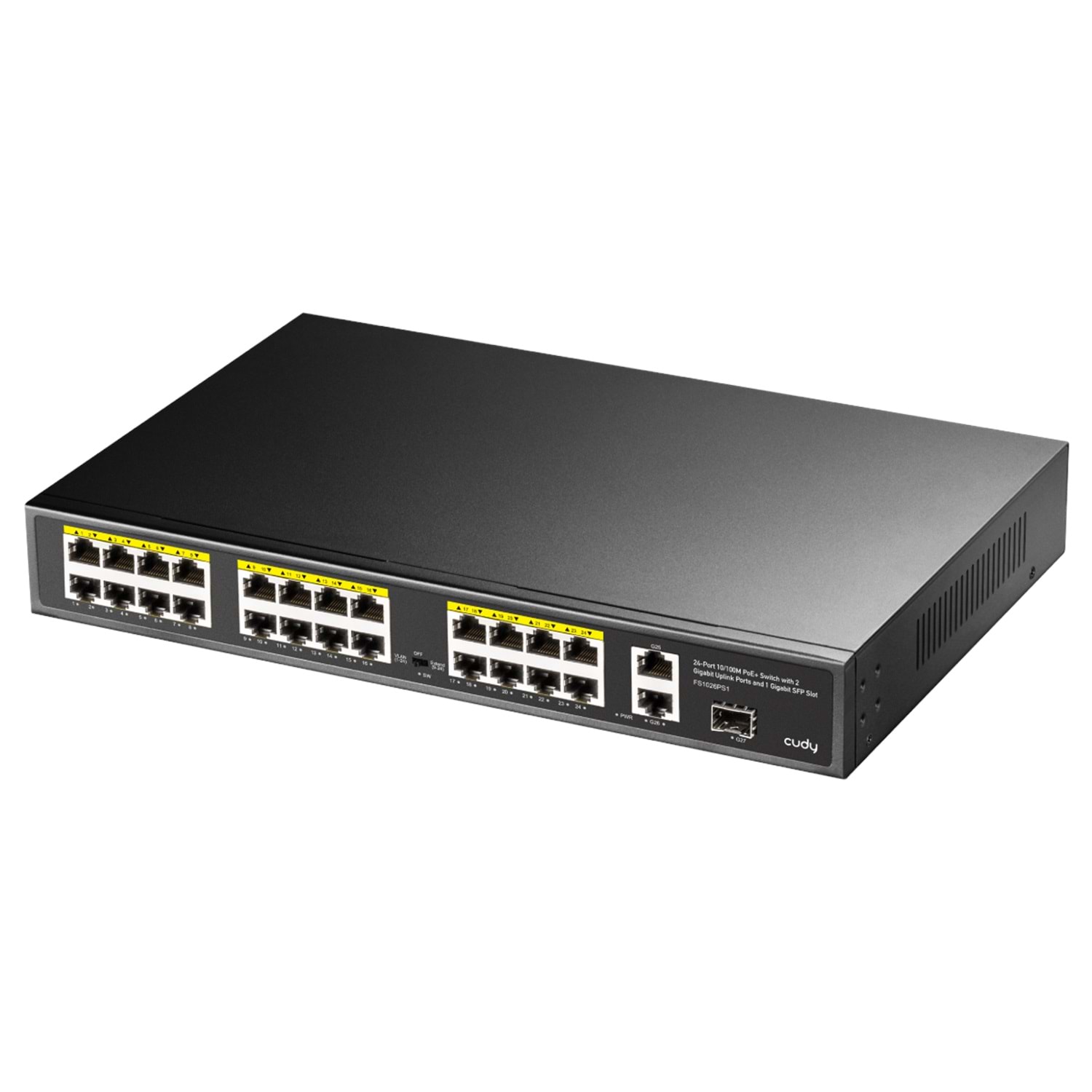

FS1026PS1 24-Port 10/100M PoE+ Switch 300W

300 W Power budget & 30 W Maximum One Port

Supports a total PoE power of 300 W and up to 30 W for one PoE port. Non-standard PoE devices or normal PoE switches are not burned. Meets IEEE802.3af / at standard.

Watchdog guarantees uninterrupted operation of the PoE devices

The PoE watchdog continuously monitors the connection status of remote hosts. If an error is detected on the remote PoE device, the PoE switch immediately restarts the device to bring it back to normal operation.

Plug&Play, Fanless design

Plug and Play, Easy of use.Fanless design for silent operation.Made of high-quality metal case, sturdy and durable with long service life, provide better heat dissipation, suitable for most environment. Pin assignment, Mode A: 1/2(+),3/6(-)

Surveillance

Works with IP Cameras for home and office, small business

VoIP Conference Call

Works with VoIP phones for business conference

Wi-Fi Coverage

Works with WiFi APs for office and business

Mode

FS1026PS1

Connector Type

Network Protocols

IEEE802.3

IEEE802.3u

IEEE802.3ab

IEEE802.3x

IEEE802.3z

PoE Parameters

PoE Standard: IEEE802.3af /IEEE802.3at

Max each port: 15.4W ( IEEE 802.3af )

Max each port：30W ( IEEE 802.3at )

PoE compatibility: IEEE 802.3af/at adaptive

PoE port output: DC48-55V

Power Pin : Power over spare pairs 1/2(+) , 3/6 (-)

Network Media

10BASE-T: Cat 6 UTP(≤250 meter)

100BASE-TX: Cat5 or more UTP (≤100 meter)

1000BASE-TX: Cat5 or more UTP (≤100 meter)

Optical

MultiMode Fiber: 850nm, 1310nm,

Transmission Distance: 550m/2Km

Single-Mode Fiber: 1310nm, 1550nm,

Transmission Distance: 20/40/60/80/100/120km

Performance Specification

Bandwidth: 10.8Gbps

MAC Address: 2K

Packet Buffer Memory: 1M

Packet Forwarding Rate: 8Mpps

Forwarding Mode: Store-And-Forward

Power Supply

Product Input Voltage: AC100-240V 50/60Hz

Power Budget: 300W

Led indicator

PWR

Lighting：Powered

Un-Light：No Power

Led indicator

SW

OFF: Normal
Vlan: Lighting
Extend: Slow flash

1-27

Lighting：Connecting
Flashing：Data Transmit
Un-Light：Disconnect

Working Environment

Operating Temperature: -20℃ ~ 50℃;

Storage Temperature: -40℃ ~ 85℃;

Operating Humidity: Max 90%, non-condensing

Storage Humidity: Max 95%, non-condensing

Working Height: Max to 10,000 feet (3,000 meters）

Storage Height: Max to 10,000 feet (3,000 meters)

Physical Parameter

Product Dimension (L*W*H): 320mm*210mm*46mm

Package Dimension (L*W*H): 375mm*270mm*85mm

N.W: 1.9KG

G.W: 2.4KG

MTBF

100,000 hours
