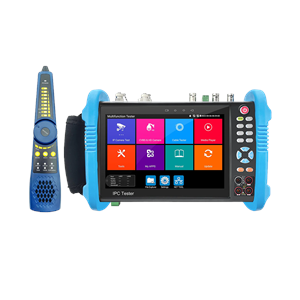

| Model | IPC-9800MOVTADHS Pro |
| CPU/RAM/ROM | 4-core 2.0GHz/1GB(DDR)/8GB(EMMC) |
| Operating system | Android 11.0 |
| Display | 7 inch IPS touch screen, 1280*800 resolution, Backlit buttons |
| CVBS | 1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt) |
| Analog video level meter, peak video signal level, SYNC signal level, CVBS color bar chroma level measurement |
| PTZ control, RS485 control, Baud 600-115200bps,compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc |
| CVBS loop test, The tester send and receive CVBS color bar generator signal, check BNC cable |
IP camera test
Max 8K 32MP | IP Discovery/ONVIF/IPC test /RTSP play /Client APK |
| Rapid Video, Auto view the video, create testing report |
| Hik test tool, pressing just one key to activate hikvision camera , Image test, can modify the user name, password and IP parameters |
| Dahua test tool, Dahua camera test, modify the user name, password and IP parameters |
| IP& CVBS test | IP& CVBS test at the same time, converter test from analog to digital with dual test window |
| Coaxial HD test | 8MP TVI camera test, 3840 x 2160P 15FPS, UTC control/call OSD menu, Support coaxial audio |
| 8MP CVI camera test, 3840 x 2160P 12.5F/15F,UTC control/call OSD menu |
| 8MP AHD camera test, 3840 x 2160P 15FPS, UTC control/call OSD menu |
| 8MP EX-SDI, HD-SDI, 3G-SDI camera test, UTC control & call OSD menu |
| HDMI input | 1 channel HDMI input, support 4K 3840x2160P 30fps |
| HDMI output | 1 channel HDMI output, support 4K 3840x2160P 60fps (NOTE: HDMI output havr 2 output modes, please view details) |
| VGA input | 1 channel VGA input, support 1920x1080P 60fps |
| Zoom Image | 4x zoom, to enlarge image, Screen snapshot, record ,save ,view and record and play back |
| Analog Video out | color bar generator：Output one channel PAL/NTSC color bar video signal for testing monitor or video cable |
| Power output | USB DC5V/2A power output, as a power bank |
| DC12V/3A power output ,supply temporarily power for the camera |
| DC24V/2A power output ,supply temporarily power for the speed dome camera |
| Standard PoE power output, DC48V, max power 25.5W |
| Cable test | Cable tracer(Wire Finder)：Contains a digital cable tracer. search BNC cable, network cable and telephone cable from the mess cables.
Support AC voltage detector. voltage range: AC12V-1000V, Frequency: 50/60Hz, Alarm mode: sound and light double alarm, Safety class: CAT.III 1000V / CAT.IV 600V, CE |
| UTP cable test：Test UTP cable connection status and display on the screen. Read the number on the screen |
| RJ45 TDR cable test：Test cable pair status, length, attenuation, reflectivity, impedance, skew etc, measurement range 180M. |
Digital Multimeter
(DMM) | DC and AC voltage measurement, Resistance measurement, Continuity test, Diode measurements, Capacitance measurement
DC&AC voltage measurement(V): the highest range is 660V, the accuracy is ±0.3%+4(DC)/±0.8%+6(AC), resolution is 100mV; DC&AC current measurement(A): the highest range 10A, accuracy ±(1%+5), resolution 10mA; Resistance measurement(Ω): the highest range is 66MΩ, the accuracy is ±(1.2%+2), the resolution is 10KΩ,the Lowest range is 660Ω, the accuracy is ±(0.8%+5), the resolution is 0.1Ω; capacitance measurement(F):the highest range is 66mF, the accuracy is ±(5%+8), the resolution is 10uF,
the Lowest range is 6.6nF, the accuracy is ±(0.5%+20), the resolution is 1pF; Diode measurement;At the same time, the tester’s multimeter can continuity testing. Automatically adjust 0. |
Optical power meter
(OPM) | Wavelength: 1625,1550nm,1490nm,1310nm,1300nm,850nm, measurement range, -70 to +10 dBm, Measurement accuracy: <±3%dB (-10dBm, 22℃), <±5%dB (full scale, 22℃)
Display resolution: Linear display 0.1%, logarithmic display 0.01dBm
Connector: Active FC/PC |
Visual fault locator
(VFL) | 10mW visual fault locator with 650nm wavelength, can emit red laser sources to test multi-mode and single mode fiber’s bending and breakage, test range 10km(32,808 ft), Connector: Active FC/PC |
| TDR cable test (hardware support) | Measurable cable type: metal cable, include BNC cable, network cable, telephone cable, RVV cable and elevator cable, cat 5/6 cable’s length and short circuit. measurement range 1,200m(3,937 ft) |
| Video level test | Analog video level meter, peak video signal level, SYNC signal level |
| Network interface | RJ45 Dual Gigabit Ethernet ports, 10/100/1000Mbps adaptive |
| Network test | Trace route, Link monitor, DHCP server, port flashing, Ping test |
| Wi-Fi | Built in WIFI, 2.4GHz, speeds150Mbps |
| Audio test | 1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone |
| Data monitor | Captures and analyzes the command data from controlling device, also can send hexadecimal |
| Power management | View real-time data such as voltage and power of POE, DC12, DC24V output/PSE, and DC12V input. |
| Drop-down menu | You can PoE power switch, IP setting, WLAN switch, HDMI IN functions etc in any interface |
| TesterPlay | screen projection: tester, mobile phone and PC display at the same time (only for android mobile phone) |
| Power supply | DC12V/2A |
| Battery | Built-in 7.6V Lithium polymer battery,7800mAh, 59.28Wh |
| Rechargeable | After charging 3 to 4hours, normal working time 15 hours |
| Operation setting | OSD menu, your desired language: English, Polish, Italian, Korean, Russian, Spanish, Japanese, French, German, Turkish, Portuguese, Vietnamese, etc. |
| Auto off | 1 to 30(mins) |
| Working Temperature | -10℃ to +50℃ (14℉ to 122℉) |
| Working Humidity | 30% to 90% |
| Dimension/Weight | Tester: 240x135x35mm(9.4×5.3×1.4inch) / 1050g(2.31lbs)
Package: 320x290x100mm(12.6×11.4×3.94) / 2500g(5.51lbs) |
