De ions:

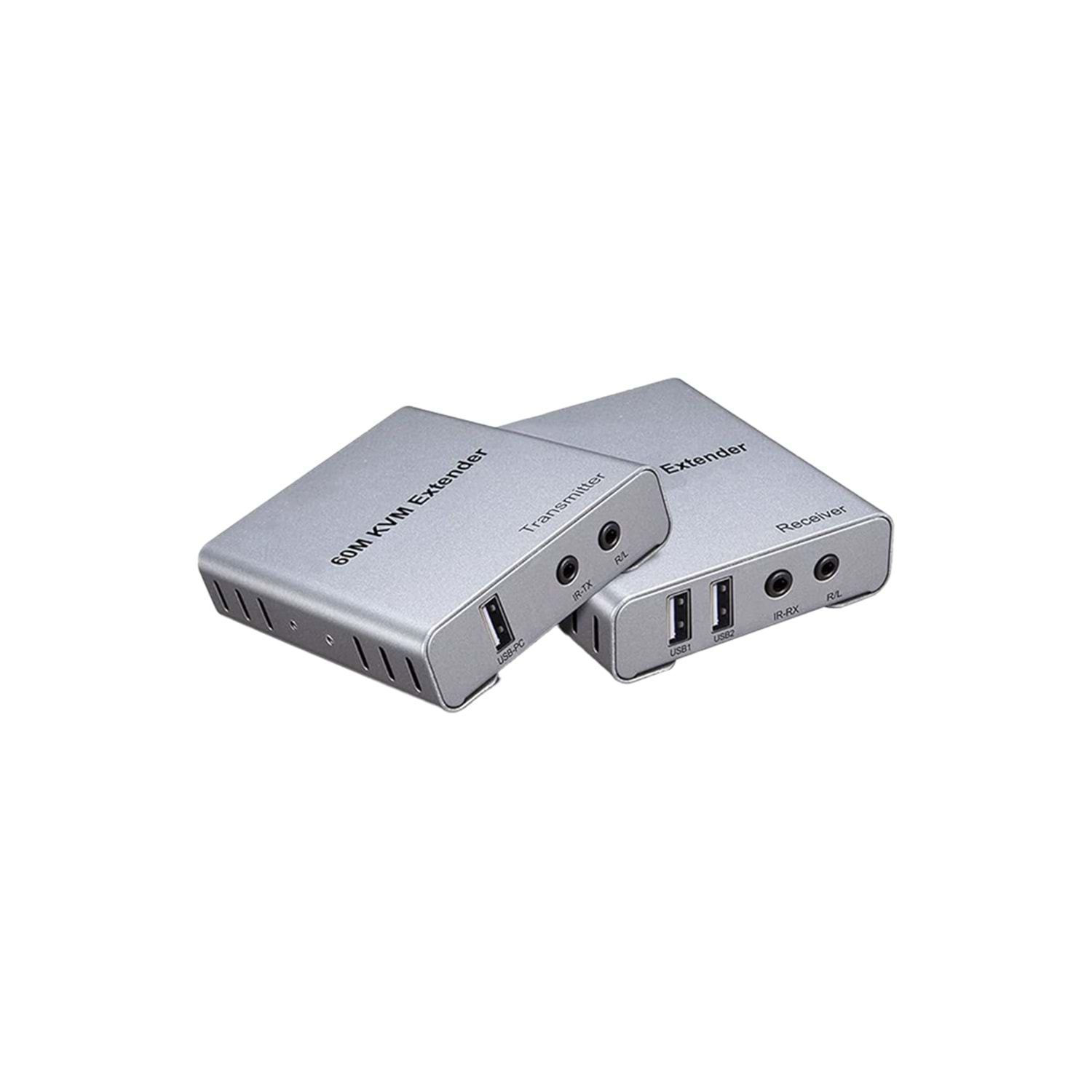

The Extender uses single cat5e or cat6(recommended)cables instead of HD cable to transmit high definition signal up to 60 meters,cutting down the cost. The Extender is designed to supply for long distance transmission of high definition signal.
Features:
Support highest video resolution 1080p/60Hz;
60M long distance transmission;
Both the TX and RX support 3.5MM left and right audio output;
Low power consumption, low temperature and high safety;
Support IR remote control;
Support USB mouse and keyboard extension.
Specifications:
Length of CAT-6/CAT-5E cable between Rx and TX: Up to 60 meters
HDMI-compatible Input: 1080p/1080i720p/576p/576i/480p/480i
HDMI-compatible Output: 1080p/1080i720p/576p/576i/480p/480i
Max bandwidth: 150MHz
Max baud rate: 4.5Gbps
Input video signal: 0.5~1.5Volts p-p
Output DDC signal: 5Volts p-p (TTL)
Input/Output HDMI-compatiblecable distance: ≤10m AWG26 HDMI-compatible standard cable
TX Max working current: 300mA
RX Max working current: 300mA
Power adapter format: Input:AC (50HZ, 60HZ) 100V-240V;
: DC5V/1A
Package Included:
1 xHDMI-compatible Transmitter
1 xHDMI-compatible Receiver
1 x IR receiver cable
1 x IR transmitter cable
2 x 5V power adapter
1 x Manual
